Mid Drive Motor

$350.00 USD

~~$0.00 USD~~ $350.00 USD

Sale Sold out

Specification Hall-Sprocket Adapter

Voltage 72V

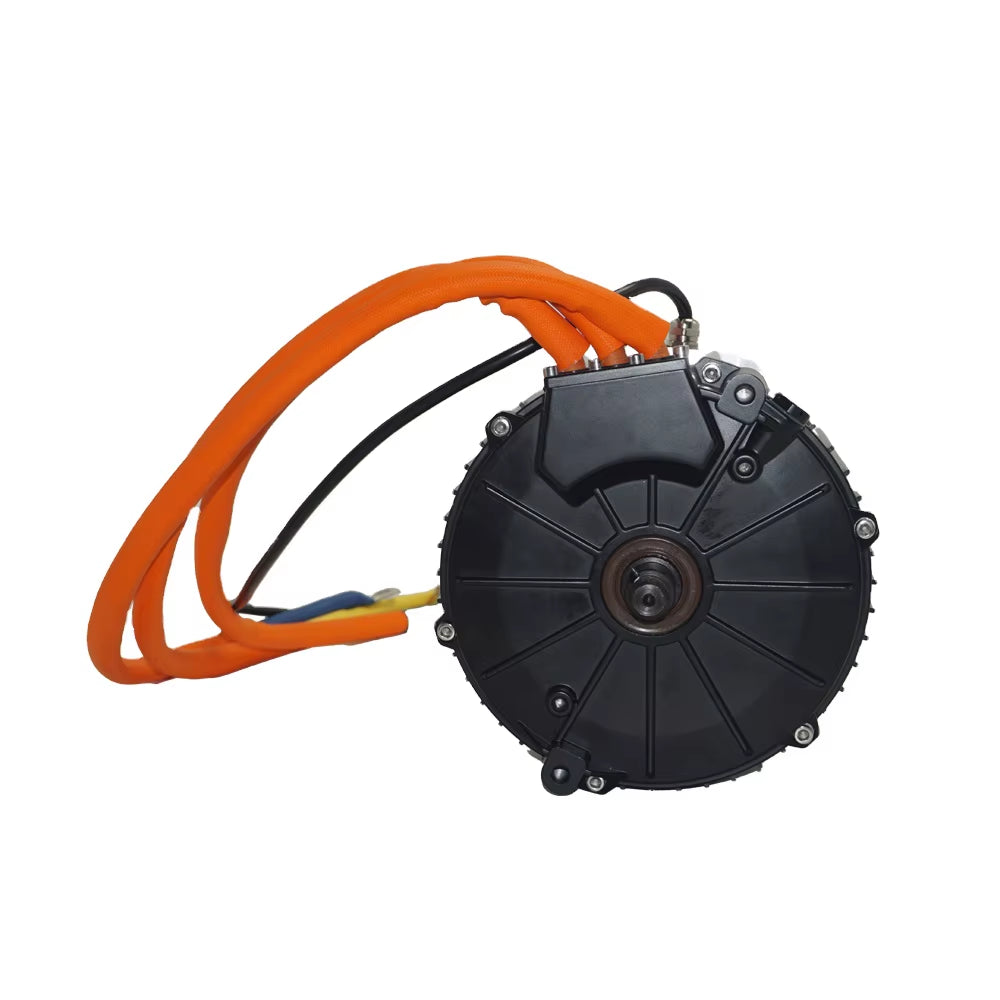

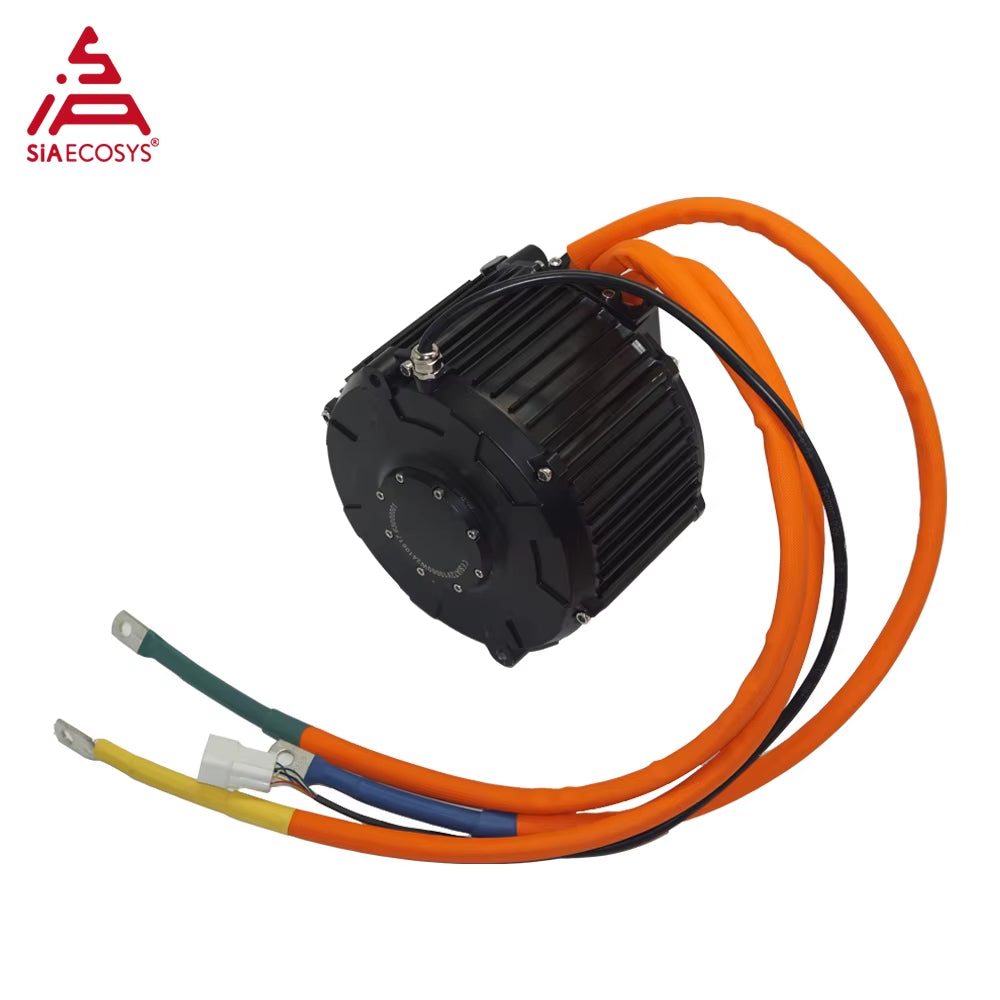

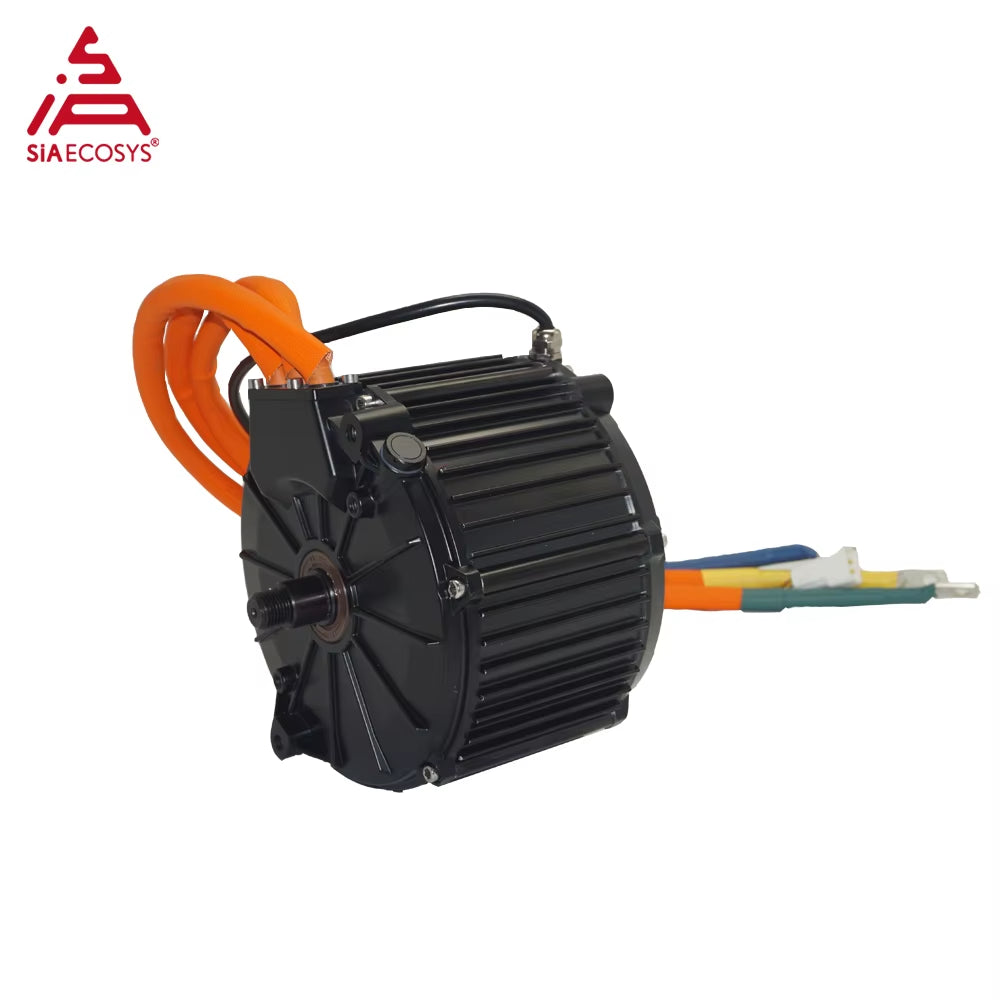

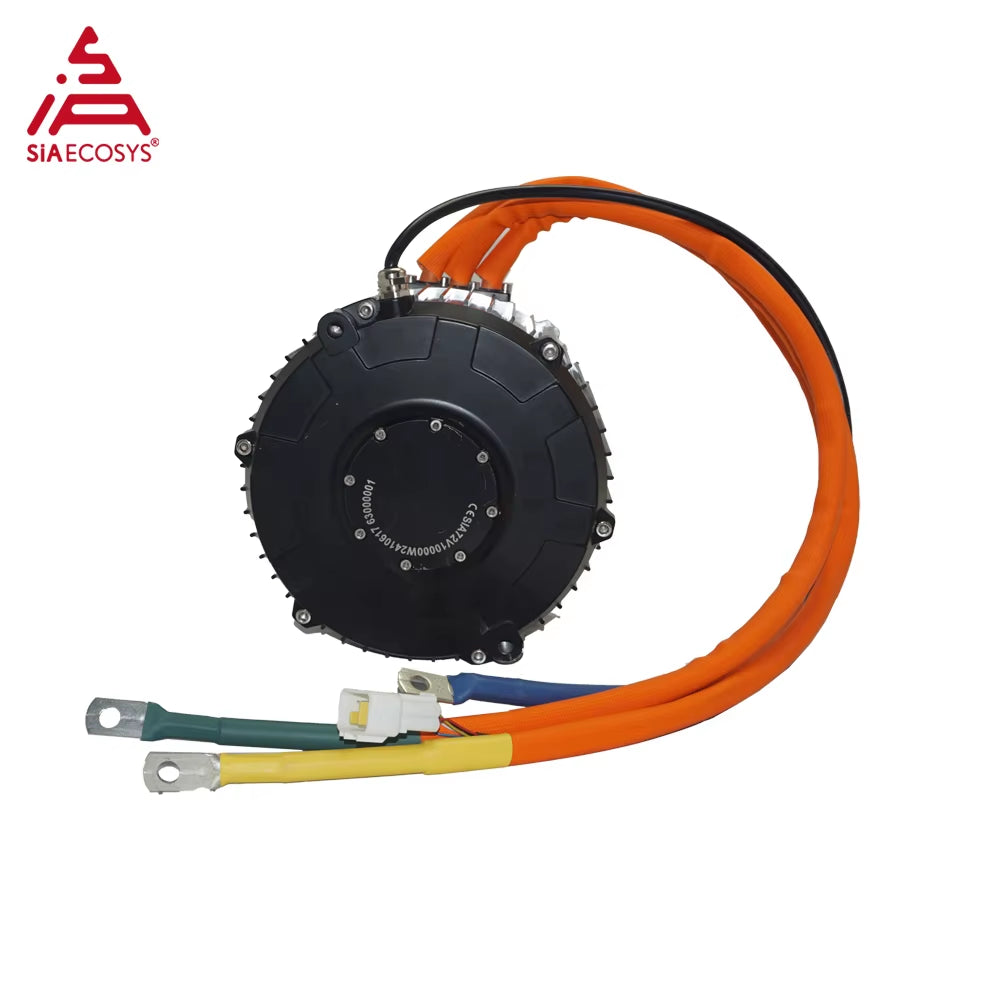

New Arrive High Power Electric Bicycle Mid Drive Motor Hall Version qs165 50h 10kw

For 165 50H 10000W mid drive motor , it could be used for electric bike, which can fit Surron bike, which could be 72V 110-120KPH. This motor we have Hall and Encorder Type, we provide hall type as default.

One set including below kits

Combo 1（Hall Type）
1.1pc X QS165 50H 10kW Mid Drive Motor Taper Shaft（Hall）
2.1pc X 428 14T Sprocket Adapter

Key Features
1) Light weight and small dimension compare to hub motor
2) High performance benefit from flux weakening
3) High efficiency during climbing, and better acceleration
4) Support regenerative braking

For this motor, we have matched controller, display, throttle, main harness, if needs, pls free to contact us.

This QS165 5KW Motor can fit high speed electric dirtbike.

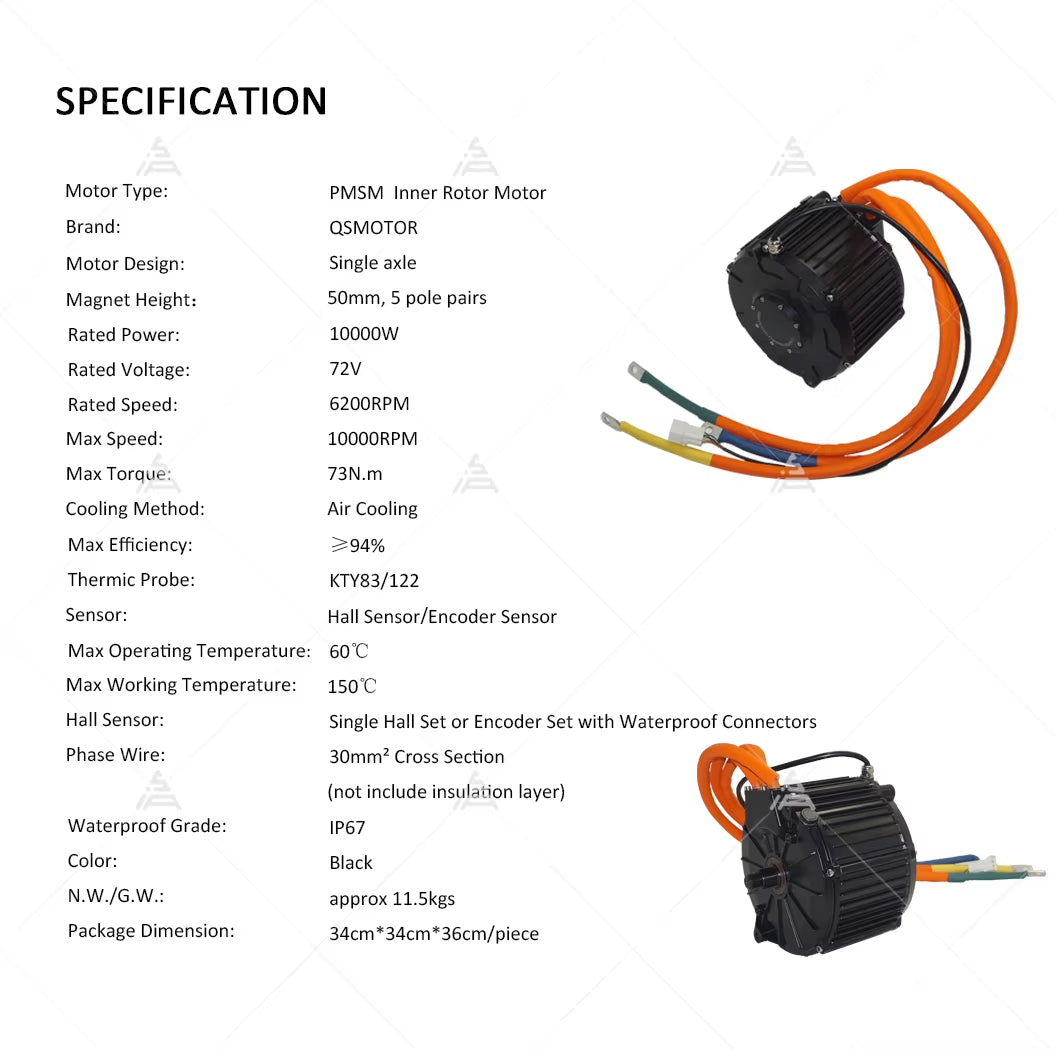

Motor type:	QS165 50H 10KW Mid Drive Motor
Brand:	QSMOTOR
Motor Design:	PMSM
Sensor	Hall/Encorder can be choosed
Magnet Height:	50H
Rated power:	10000W
Peak power:	20000W
Rated voltage:	48v-96v
Speed:	Rated 6200RPM, peak 10000W
Max torque:	73N.m
Max efficiency:	93%
Thermic probe:	KTY83-122
Working temperature:	70-120℃, peak 150℃
Hall sensor:	1 set
Phase cable:	30mm² Cross Section of Phase Wire (not include insulation layer)
Waterproof grade:	IP67
Color :	Black
N.W./G.W.:	11.5kgs/12.5kgs
Packing dimension:	34cm34cm33cm
